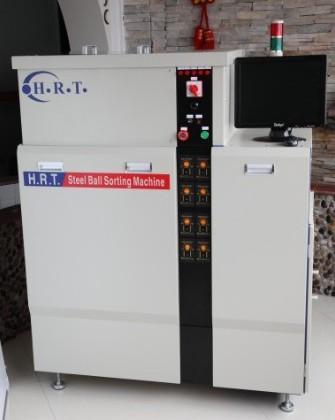

Products model：HRT-1201

Range of application

This new roller sorting machine is mainly used for selecting size precision of thesteel balls automatically. The precision ≤0.001mm is very applicable to size precision selecting of difference diameter steel balls. During rough sorting period, it also canbe used to pick different balls, scrapped parts and surface defected balls out. Meanwhile, it is applicable to various sizes of hi-precision metal and electronic components.

Structural Features

This machine is designed by totally enclosed type, shapely and clean, good dustproof performance.  There are total 4 groups sorting rollers to operate,which being 4 times efficiency compare with traditional machine, but 1/4 labor cost only, equipped with a special classified collecting box and the corresponding sensor, also designed with moisture-proof device and HD industrial camera. Our latest patented roller designing improve precision sorting to ≦0.001mm. The auto-input material feeding system has been adopted to this new machine, which is capable for adjusting the feeding speed and sorting different size steel balls.

Main Technical Parameter

Ball size φ2mm--φ10mm

Precision ≤0.001mm

Roller effective classification length 460mm

Diameter of roller φ35mm

Velocity modulation range of the roller 0-260turn/minute

Vibration material input capacity 300-350kg

Motor total power 120W

Pulling force of vibration electromagnet ≥2.7KN

Source of electricity 220V/50Hz

Overall size (L × W × H) 1200x705x1560mm

Net weight 380kg
